RUBBER HOSES

Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Brochure
Certificates
Enquire Now

Rubber Hose for Welding (IS:447)

Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • Lining: 1.5mm
  • Color: Red / Blue / Black (ISI Marked), Twin (as per ISI)
  • Length: 15 / 30 / 50 / 100 mtr. (or as per buyer requirement)
  • ID (Nominal Bore) MM: 5 / 6.3 / 8 / 10 / 12.5
  • Reinforcement: Synthetic Fibres
  • Cover Thickness: 1.0mm for 8mm / 10mm, 1.5mm for 12.5mm

Rubber Hose for Welding (IS:447)

Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Mitras Rubber Hose for Welding
Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • Lining: 1.5mm
  • Color: Red / Blue / Black (ISI Marked), Twin (as per ISI)
  • Length: 15 / 30 / 50 / 100 mtr. (or as per buyer requirement)
  • ID (Nominal Bore) MM: 5 / 6.3 / 8 / 10 / 12.5
  • Reinforcement: Synthetic Fibres
  • Cover Thickness: 1.0mm for 8mm / 10mm, 1.5mm for 12.5mm
Brochure
Enquire Now

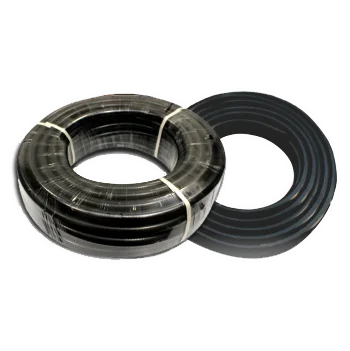

Rubber Hose for Water (IS:444)

Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM: 10 / 12.5 / 16 / 19 / 25 / 32 / 38 / 50
Types Available Working Pressure Bursting Pressure Proof Pressure at 23°C
Type 1
Type 2
Type 3 		6 bar
10 bar
23 bar 		18 bar
30 bar
100 bar 		9 bar
15 bar
50 bar
MItras Rubber Hose for Water
Brochure
Certificates
Enquire Now

Rubber Hose for Water (IS:444)

MItras Rubber Hose for Water
Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM: 10 / 12.5 / 16 / 19 / 25 / 32 / 38 / 50
Types Available Working Pressure Bursting Pressure Proof Pressure at 23°C
Type 1
Type 2
Type 3 		6 bar
10 bar
23 bar 		18 bar
30 bar
100 bar 		9 bar
15 bar
50 bar
Brochure
Enquire Now

Rubber Air Hose for General Purpose (IS:446)

MItras Rubber Hose for Water
Rubber Air Hose for General Purpose (IS:446)
Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM: 5 / 6.3 / 8 / 10 / 12.5 / 20
Types Available Working Pressure Bursting Pressure Proof Pressure
Type 1


Type 2 		7.14 kgf/cm²

10.2 kgf/cm² 		28.56 kgf/cm²

40.8 kgf/cm² 		14.28 kgf/cm²

20.4 kgf/cm²
Brochure
Enquire Now
MItras Rubber Hose for Water
Rubber Air Hose for General Purpose (IS:446)
Brochure
Certificates
Enquire Now

Rubber Air Hose for General Purpose (IS:446)

Technical Specifications
  • Material: Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM: 5 / 6.3 / 8 / 10 / 12.5 / 20
Types Available Working Pressure Bursting Pressure Proof Pressure
Type 1
Type 2 		7.14 kgf/cm²
10.2 kgf/cm² 		28.56 kgf/cm²
40.8 kgf/cm² 		14.28 kgf/cm²
20.4 kgf/cm²

Rubber Air Hose for Rock Drilling Purpose (IS:446)

Technical Specifications
  • Material : Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM : 5 / 6.3 / 8 / 10 / 12.5 / 20
Types Available Working Pressure Bursting Pressure Proof Pressure at 23°C
Type 3 14.28 kgf/cm² 57.10 kgf/cm² 28.56 kgf/cm²
MItras Rubber Hose for Water
Rubber Air Hose for General Purpose (IS:446)
Brochure
Certificates
Enquire Now

Rubber Air Hose for Rock Drilling Purpose (IS:446)

MItras Rubber Hose for Water
Rubber Air Hose for General Purpose (IS:446)
Technical Specifications
  • Material : Synthetic Rubber Hybrid Compound
  • ID (Nominal Bore) MM : 5 / 6.3 / 8 / 10 / 12.5 / 20
Type Available Working Pressure Bursting Pressure Proof Pressure at 23°C
Type 3 14.28 kgf/cm² 57.10 kgf/cm² 28.56 kgf/cm²
Brochure
Enquire Now
