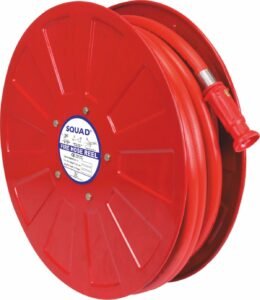

CE Marked (EN-671-1) Fire Hose Reel Assembly

Technical Specifications

  • Side Plates : Made of high quality mild steel, powder coated in Red colour
  • Side Plates O.D. (Diameter) : 22″ (559 mm)
  • Distance Between Side Plates : 6″ / 9″
  • Waterways : Made from non-ferrous metal (Aluminium Alloy) for making it corrosion resistant, duly powder coated
  • Hose Reel Drum :  Confirming to EN 671-1
  • Fire Hose : High quality semi-rigid ISI marked Type-1 / Type-2 / Type-3 or CE marked / EN approved (confirming to EN 694), flame resistant, kink & abrasion resistant, fluted finish MITRAS Thermoplastic Hose.
  • Hose Colours. Available : Red / Black / Yellow
  • Hose Nominal Bore (ID) : 19mm / 20mm(3/4″)
  • Hose Length : 20 / 25 / 30 / 36 / 40 mtrs, as per requirement
  • Shut-off Nozzle :  Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosion free Stainless Steel Grade 304 fitting, shut-off nozzle with shut, spray & jet functions, made of super tough Polymer Alloy in red colour. Optionally, Gun Metal Shut-off Nozzle also available.
  • Swivel : 180degree double swivel
  • Working Pressure : 1.2 Mpa (12 Bar

ISI Marked (IS : 884) First-Aid Hose Reel

Technical Specifications

  • Type : Type A – Swinging 180° Wall Mounting
  • Inlet : 20MM (¾” BSP Thread Size)
  • Hose Reel Drum : Confirming to IS 884
  • Hose Reel Tubing : Rubber Hose (IS 444) / Thermoplastic Hose (IS 12585)
  • Type of Hose Tubing : Type 1 / Type 2 / Type 3
  • Hose Colours. Available : Red / Black / Yellow
  • Hose Nominal Bore (ID) : 19mm / 20mm(3/4″)
  • Hose Length : 20 / 25 / 30 / 36 / 40 mtrs, as per requirement
  • Shut-off Nozzle :  Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosionfree Stainless Steel Grade 304 fitting, shut-off nozzle with shut, spray & jet functions, made of super tough Polymer Alloy in red colour. Optionally, Gun Metal Shut-off Nozzle also available.

Thermoplastic Hoses

Features
  • ISI marked (IS:12585) , EN 694
  • 3 Layered, Non-crackable
  • Both ends sealed for puncture-free test
  • Kink, Abrasion & Flame Resistant
  • Excellent Pressure Sustainability
  • Anti Ageing & Non-Corrosive
  • Puncture & Crush Resistant
  • Non-sticky even in hot weather
  • Aesthetically Appealing
  • Meter marking on every meter
  • Recyclable, so Eco-friendly
  • Light weight - easy to use
  • Lesser load on Hose Reel Drum
  • Fluted finish for better grip
  • TYPE 1 TYPE 2 TYPE 3
  • Working Pressure : 7.2 Kg/cm²
  • Bursting Pressure : 21.5 Kg/cm²
  • Working Pressure : 10.2 Kg/cm²
  • Bursting Pressure : 32.5 Kg/cm²
  • Working Pressure : 25.5 Kg/cm²
  • Bursting Pressure : 102 Kg/cm²

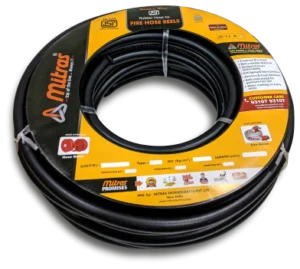

  • Rubber Hoses

    Features
  • Material : Rubber Hybrid Compound
  • BIS Standard : IS:444
  • ID(Normal Bore) : 19mm / 25mm
  • Type Available : Type1 / Type 2 / Type 3
  • TYPE 1 TYPE 2 TYPE 3
  • Working Pressure : 6 Bar (6.2 Kg/cm²)
  • Bursting Pressure : 18 bar (18.5 Kg/cm²)
  • Working Pressure : 10 bar (10.2 Kg/cm²)
  • Bursting Pressure : 30 bar (30.6 Kg/cm²)
  • Working Pressure : 25 bar (25.5 Kg/cm²)
  • Bursting Pressure : 100 bar (102 Kg/cm²)

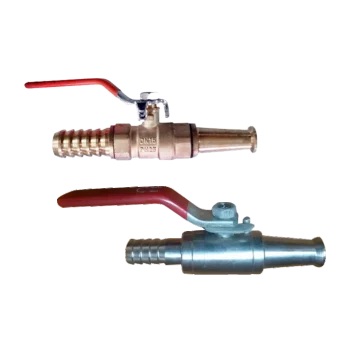

  • Shut-Off Nozzle Gun Metal / Stainless Steel

    Features
  • Gun Metal / Stainless Steel
  • Leak Proof
  • Corrosion Free
  • Also available hydraulically fitted on hose with Stainless Steel fitting

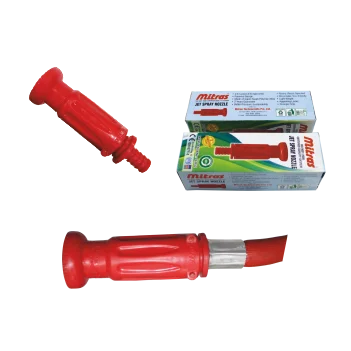

  • Jet Spray Shut-Off Polymer Nozzle

    Features
  • CE marked (confirming to EN 671-1)
  • Patent Design No. 244452
  • Super-tough recyclable Polymer Alloy used
  • Leak Proof
  • Corrosion Free
  • Rotary Operated
  • Stronger Grips
  • Appealing Looks in Red colour
  • Also available Hydraulically fitted on hose with Stainless Steel fitting
  • Hose Reel Connector

    Features
  • Connects Fire Hose Reel to Main Line
  • (IS:12585) Marked 25mm Type-2 Hose used
  • Hydraulically fitted with Steel / Aluminum Fittings
  • Colour Available - Red / Black
  • Easy to Fit
  • Leak Proof
  • Aesthetically Appealing
  • CE Marked (EN-671-1) Fire Hose Reel Assembly

    Technical Specifications

    • Side Plates : Made of high quality mild steel, powder coated in Red colour
    • Side Plates O.D. (Diameter) : 22″ (559mm)
    • Distance Between Side Plates : 6″ / 9″
    • Waterways : Made from non-ferrous metal (Aluminium Alloy) for making it corrosion resistant, duly powder coated
    • Hose Reel Drum :  Confirming to EN 671-1
    • Fire Hose : High quality semi-rigid ISI marked Type-1 / Type-2 / Type-3 or CE marked / EN approved (confirming to EN 694), flame resistant, kink & abrasion resistant, fluted finish MITRAS Thermoplastic Hose.
  • Hose Colours. Available : Red / Black / Yellow
  • Hose Nominal Bore (ID) : 19mm / 20mm(3/4″)
  • Hose Length : 20 / 25 / 30 / 36 / 40 mtrs, as per requirement
  • Shut-off Nozzle :  Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosion free Stainless Steel Grade 304 fitting, shut-off nozzle with shut, spray & jet functions, made of super tough Polymer Alloy in red colour. Optionally, Gun Metal Shut-off Nozzle also available.
  • Swivel : 180° double swivel
  • Working Pressure : 1.2Mpa (12 Bar)
  • ISI Marked (IS : 884) First-Aid Hose Reel

    Technical Specifications

    • Type : Type A – Swinging 180° Wall Mounting
    • Inlet : 20MM (¾” BSP Thread Size)
    • Hose Reel Drum : Confirming to IS 884
    • Hose Reel Tubing : Rubber Hose (IS 444) / Thermoplastic Hose (IS 12585)
    • Type of Hose Tubing : Type 1 / Type 2 / Type 3
    • Hose Colours Available : Red / Black / Yellow
    • Hose Nominal Bore (ID) : 19mm / 20mm(3/4″)
    • Hose Length : 20 / 25 / 30 / 36 / 40 mtrs, as per requirement
    • Shut-off Nozzle :  Rotary operated, leak proof, CE marked / EN approved, hydraulically crimped with corrosionfree Stainless Steel Grade 304 fitting, shut-off nozzle with shut, spray & jet functions, made of super tough Polymer Alloy in red colour. Optionally, Gun Metal Shut-off Nozzle also available.

    Thermoplastic Hoses

    Features

  • ISI marked (IS:12585) , EN 694
  • 3 Layered, Non-crackable
  • Both ends sealed for puncture-free test
  • Kink, Abrasion & Flame Resistant
  • Excellent Pressure Sustainability
  • Anti Ageing & Non-Corrosive
  • Puncture & Crush Resistant
  • Non-sticky even in hot weather
  • Aesthetically Appealing
  • Meter marking on every meter
  • Recyclable, so Eco-friendly
  • Light weight – easy to use
  • Lesser load on Hose Reel Drum
  • Fluted finish for better grip
  • Rubber Hoses

    Features

  • Non-sticky even in hot weather
  • Aesthetically Appealing
  • Meter marking on every meter
  • Recyclable, so Eco-friendly
  • Light weight – easy to use
  • Lesser load on Hose Reel Drum
  • Fluted finish for better grip
  • TYPE 1 TYPE 2 TYPE 3
    Working Pressure : 6 Bar (6.2 Kg/cm²)

    Bursting Pressure : 18 bar (18.5 Kg/cm²)
    Working Pressure : 10 bar (10.2 Kg/cm²)

    Bursting Pressure : 30 bar (30.6 Kg/cm²)
    Working Pressure : 25 bar (25.5 Kg/cm²)

    Bursting Pressure : 100 bar (102 Kg/cm²)

    Shut-Off Nozzle Gun Metal / Stainless Steel

    Features

  • Gun Metal / Stainless Steel
  • Leak Proof
  • Corrosion Free
  • Also available hydraulically fitted on hose with Stainless Steel fitting
  • Jet Spray Shut-Off Polymer Nozzle

    Features

  • CE marked (confirming to EN 671-1)
  • Patent Design No. 244452
  • Super-tough recyclable Polymer Alloy used
  • Leak Proof
  • Corrosion Free
  • Rotary Operated
  • Stronger Grips
  • Appealing Looks in Red colour
  • Also available Hydraulically fitted on hose with Stainless Steel fitting
  • Hose Reel Connector

    Features

  • Connects Fire Hose Reel to Main Line
  • (IS:12585) Marked 25mm Type-2 Hose used
  • Hydraulically fitted with Steel / Aluminum Fittings
  • Colour Available – Red / Black
  • Easy to Fit
  • Leak Proof
  • Aesthetically Appealing
